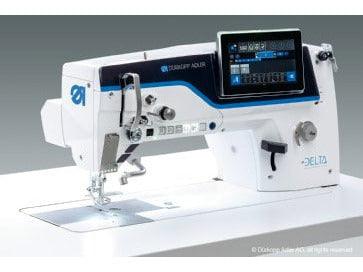

Durkopp Adler D867-190929 Walking Foot

Your specific advantages of the M-TYPE DELTA D867-190929: • M-TYPE DELTA with programmable setting elements for reproducible sewing results • Single needle version with large, two-piece vertical hook (XL, bobbin diameter 28 mm) • Long thread trimmer (remaining thread length of approx.. 32 mm) •

Wide range of sewing equipment, devices and additional equipment for demanding sewing jobs • Integrated sewing motor with network capable “DAC flex control” incl. operating panel Commander Delta ensures optimum functionality and maximum ease of use for “Industry 4.0 applications” •

Machine-specific software with intuitive user interface for convenient administration of sewing parameters 999 storage locations for machine settings (setup) or complex seam programs with 30 seams or sections max • Graphical visualisation of the process progress within the seam programs • Programmable setting elements for stitch length adjustment, sewing foot stroke, sewing foot pressure and sewing foot lifting height and needle thread tension by means of integrated stepper motor • Integrated material thickness detection (MTD) for optimization of sewing parameters during the sewing process •

Optimised working area due to enlarged clearance of 350 mm x 297 mm • Reproducible handling due to electronically driven, programmable edge guides (optional) • No compressed air required (except the use of additional equipment like needle cooling or remaining thread monitor) • Easy and precise needle positioning due to electronical handwheel (scroll wheel)

Click on PDF brochure
